Specification: | 295×1195×10mm | Wattage+/-5%: | 40W / 45W / 36W |
Efficiency (Lm/W): | 85LM/W / 95LM/W / 115LM/W | Lumen: | 3400LM / 4275LM / 4140LM |

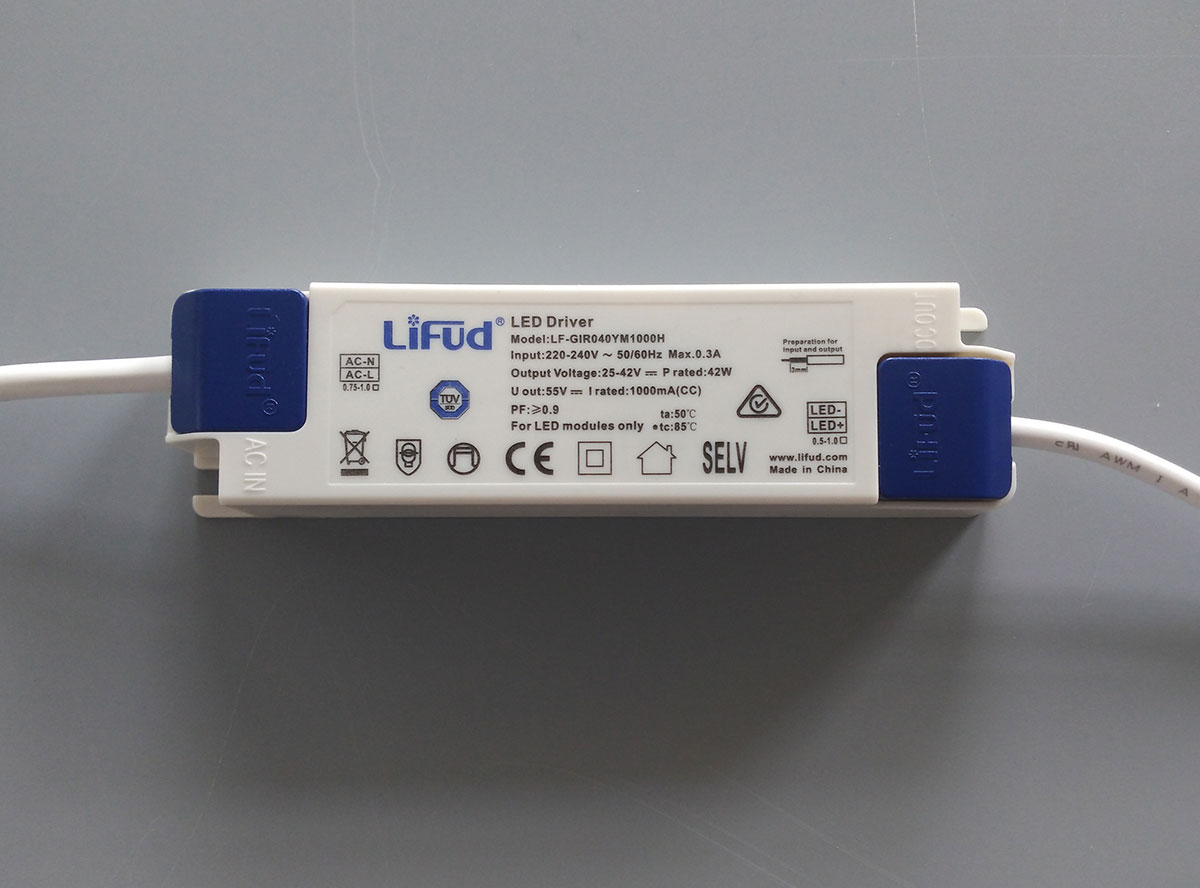

Driver: | Lifud | Input voltage: | 200~240Vac / 100~240Vac |
Output Voltage: | 27~42Vdc | Frequency: | 50/60Hz |
PF: | >0.95 | CRI: | Ra≥80 |
CCT: | 3000K / 4000K / 5000K / 6000K | LM-80 SMD Type: | SMD 4014 / 3014 |
No. of LEDs: | 144 / 224 / 280 Leds | SDCM: | <6 |
IP Rating: | 40 | Lifespan: | 3~50,000Hrs |
Remark: | U2.3 UGR<19 Anti-Glare Series |
The market leading LED flat panel is a kind of top grade indoor lighting. Make you enjoy your life in comfortable LED lighting.
——FEATURES

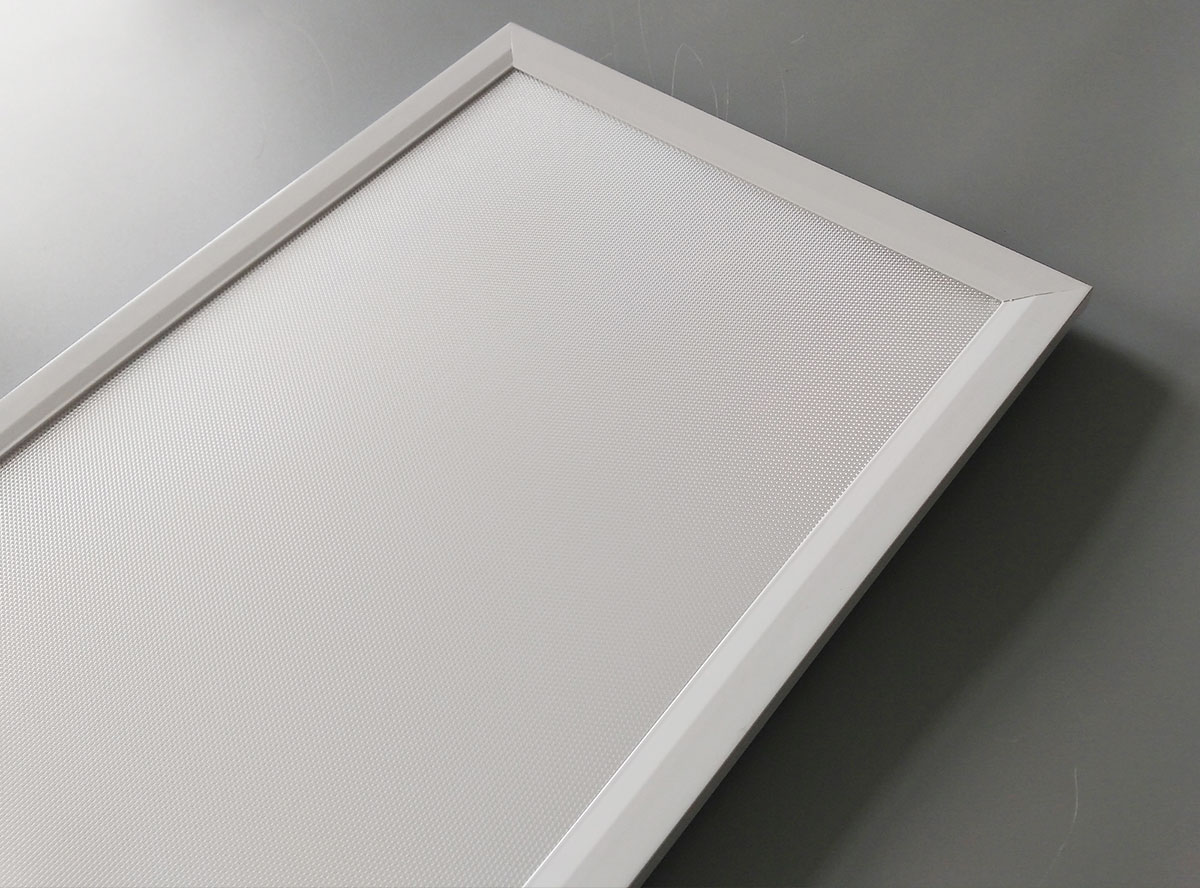

——TEST DATA■ UGR<19, Prismatic Diffuser, less glare.
■ Outstanding energy saving against T8 fluorescent.
■ High efficiency with up to 90 lumens per circuit Watt.
■ Even light distribution on walls and ceilings.
■ Easy for recessed or ceiling or hanging installation.
■ Significant lowering operation cost,short payback time.
■ Easy to clean wipeable surface.
■ Warm,natural and cool white CCT options. Excellent CRI.
■ 3~50,000 hours minimum life expectancy.
■ Emergency and dimmable versions.
■ Secure anti-temper design.
■ High visual comfort and very good glare reduction.
■ Environment friendly as it does not contain Mercury. No UV or IR radiations.
■ IP40 protection against dust.
