P-CH01-CCT ADJUSTABLE Φ320 24W Round Ceiling light2019-11-13

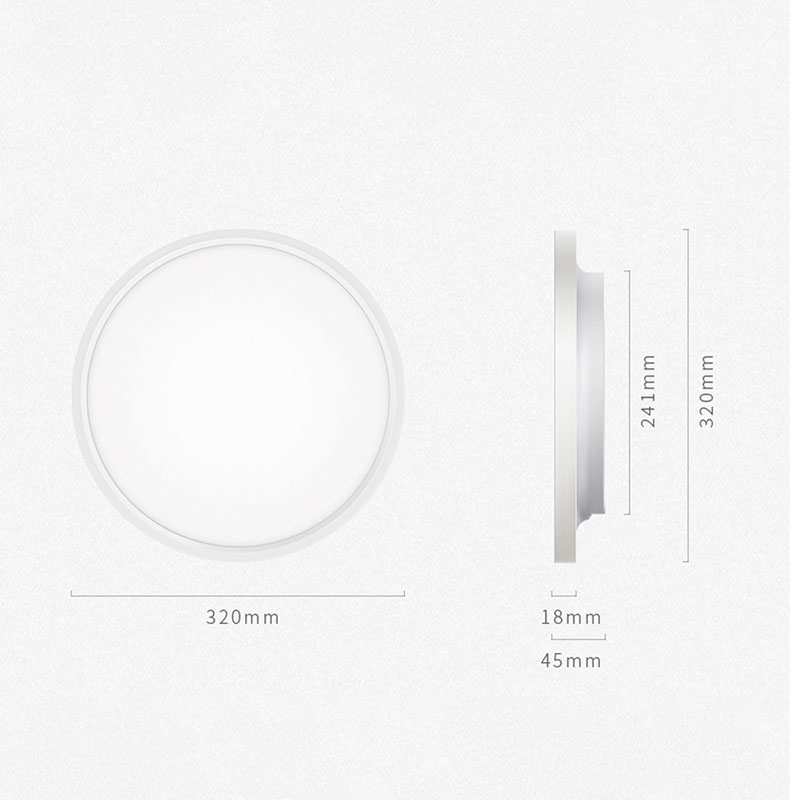

Specification: Φ320*45mm Wattage+/-5%: 24w
Efficiency (Lm/W): 70lm/w or 55lm/w Lumen: 1700lm or 1300lm
Driver: Tigi Input voltage: AC220-240V
Output Voltage: 30-40V Frequency: 50/60Hz
PF: >0.95 CRI: >80 or 95
CCT: 3000K ~ 6500K LM-80 SMD Type: SMD 4014
No. of LEDs: —— SDCM: <5
IP Rating: 40 Lifespan: 50,000hours
Remark: PANNELLO Moon Shadow Φ320*45mm CCT Adjustable type

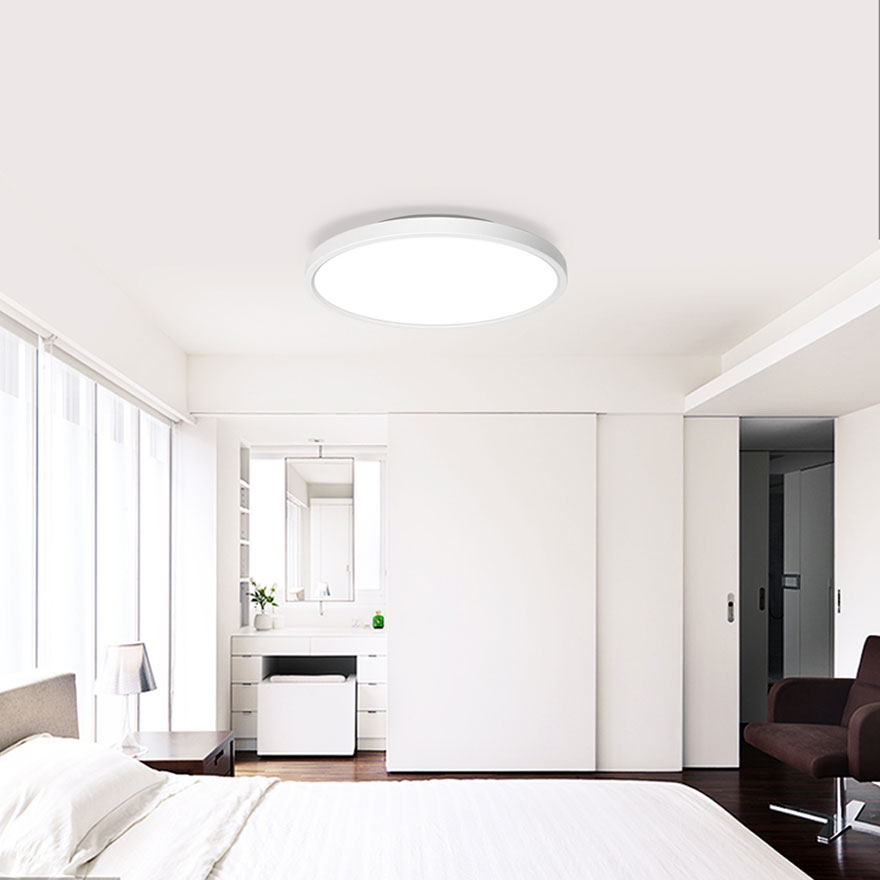

PANNELLO Moon Shadow Φ320*45mm  P-CH01-CCT Adjustable 24W RA>95 1300LM RA>80 1700LM 3000K~6500K  Round Ceiling light,Support Dimmable and CCT tunable with TUYA APP.


The market leading LED flat panel is a kind of top grade indoor lighting. Make you enjoy your life in comfortable LED lighting.



■ With high light efficiency, low energy consumption and low heat energy, the chip life can reach 8-10 years.

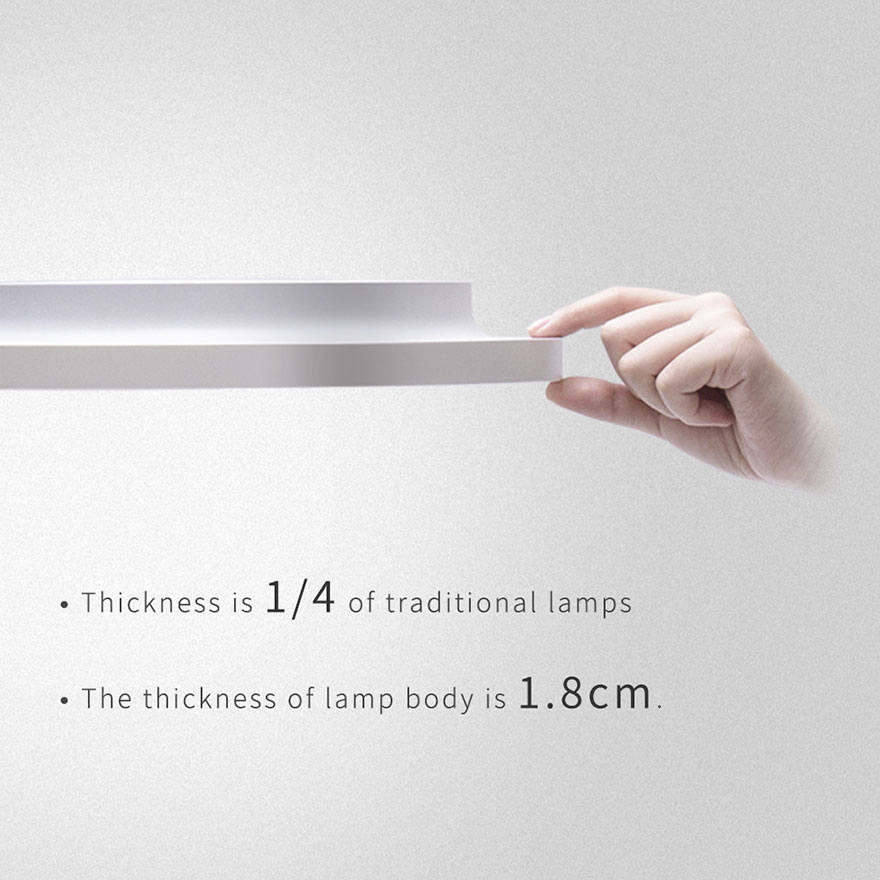

■ Slim lamp body, only 18mm thick, simple and beautiful shape, won three international design awards of IDEA, GOLDEN PIN and G-MARK in 2019.
■ RG0 level, No BLue-ray damage, with flickering-free drive, High visual comfort and very good glare reduction.
■ Excellent CRI,CRI>95 for a comfortable visual experience.

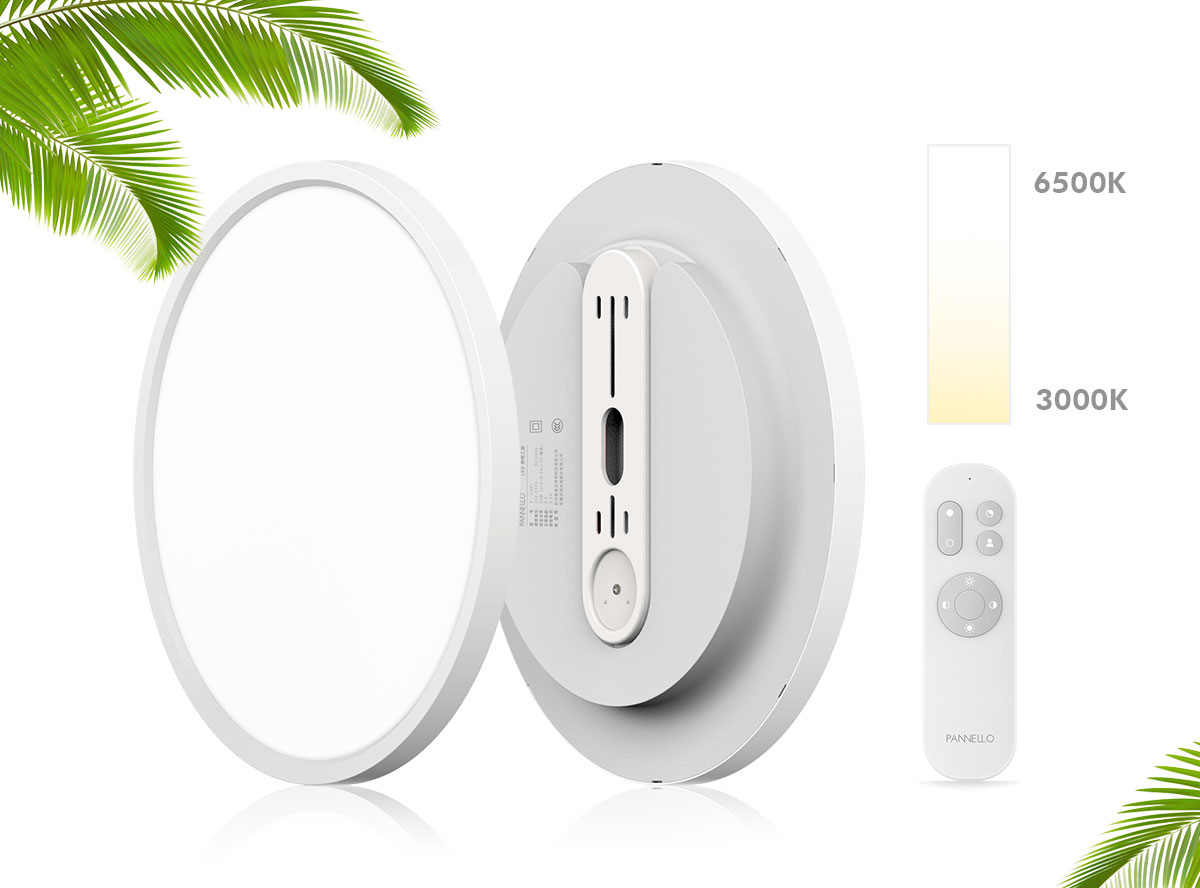

■ Use the remote control can change the color from cold,natural to warm freely.
■ Convenient to use TUYA app to adjust the light and color temperature by mobile phone.

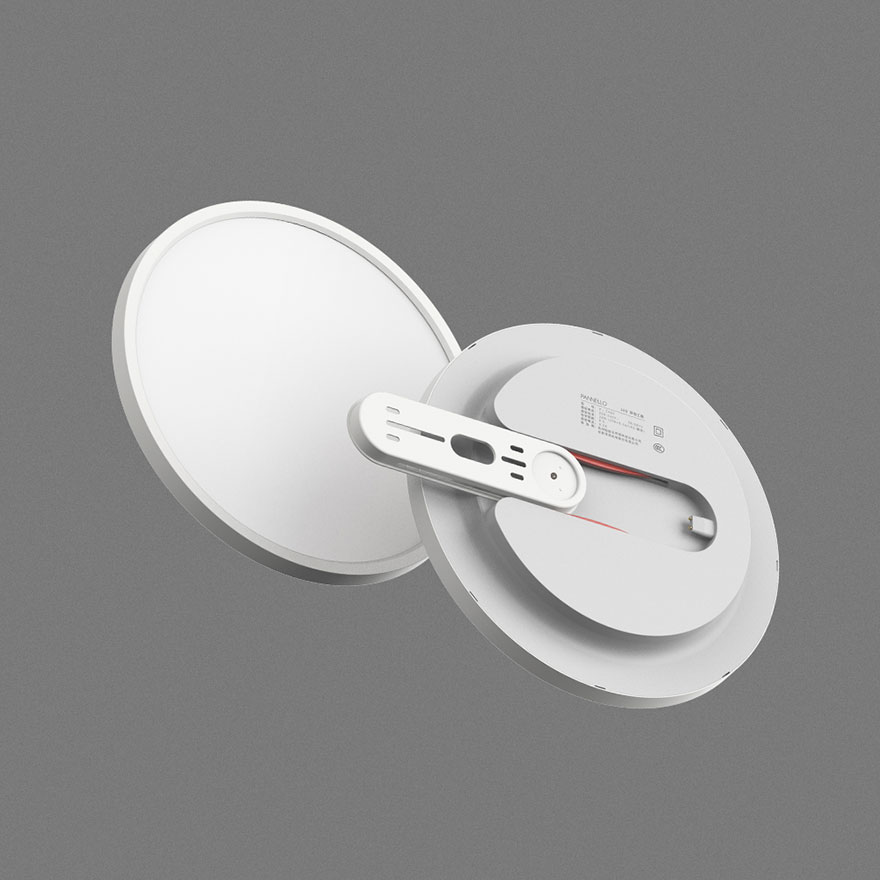

■ Innovative base, a small number of screws can be fixed to reduce the damage to the wall, slide device, convenient installation, one-step removal.
■ IP40 protection against dust, more convenient cleaning.
■ Environment friendly as it does not contain Mercury. No UV or IR radiations.

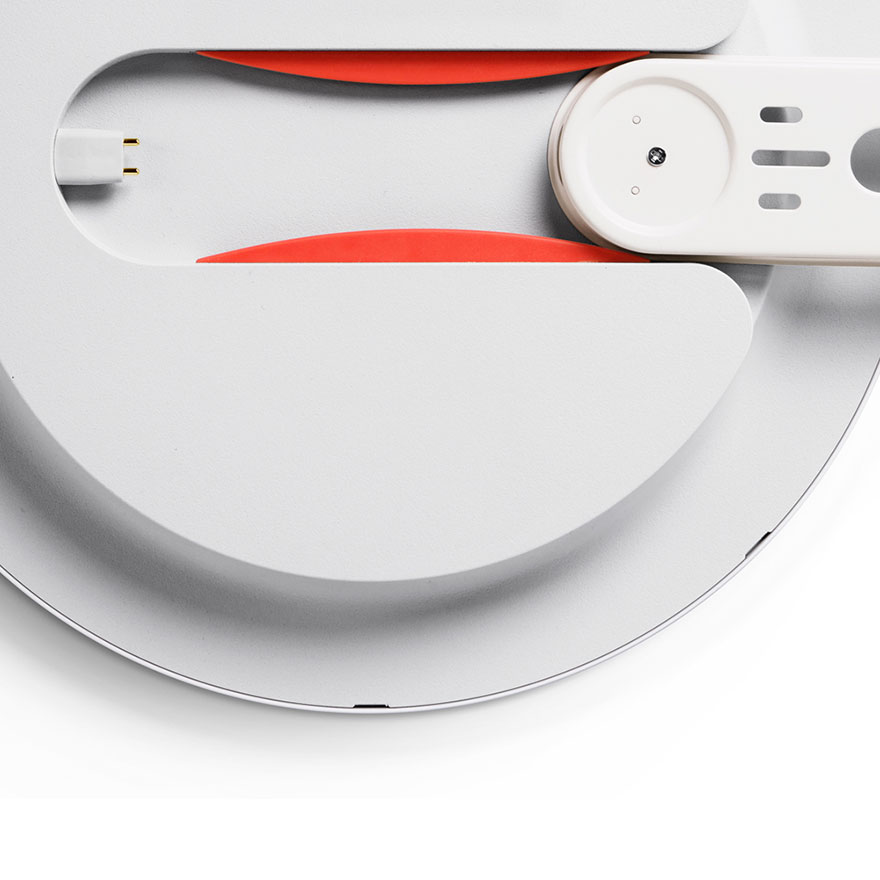

■Stylish Gold-Plated Pin at slider can increase the lifespan of the product, improve the electrical conductivity and high thermal performance.
■ ABS back plate, V2 anti flame retardant material, smooth and stable.
■ PMMA light guide plate has stronger light transmission and lower energy consumption.
■ Suitable for family, indoor, public place, children's room.
■ 5 years warranty.
