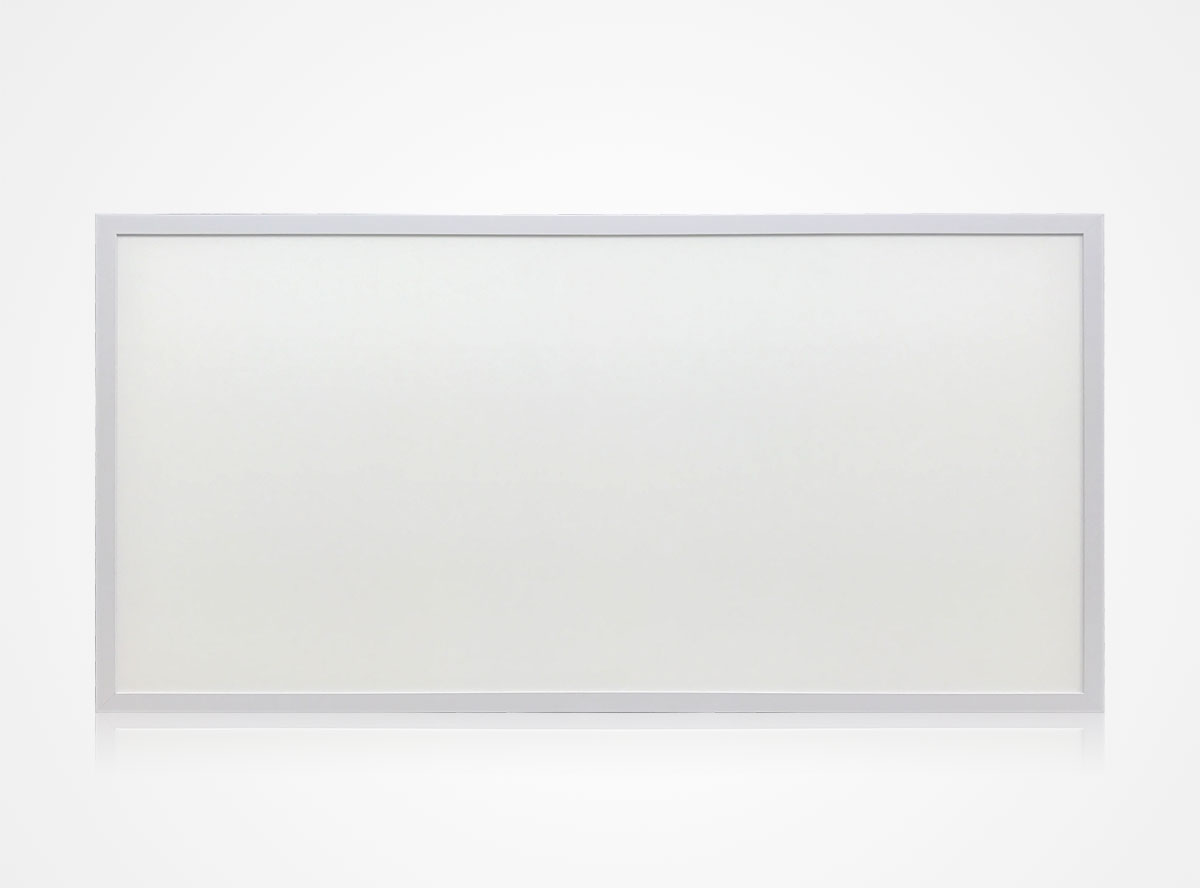

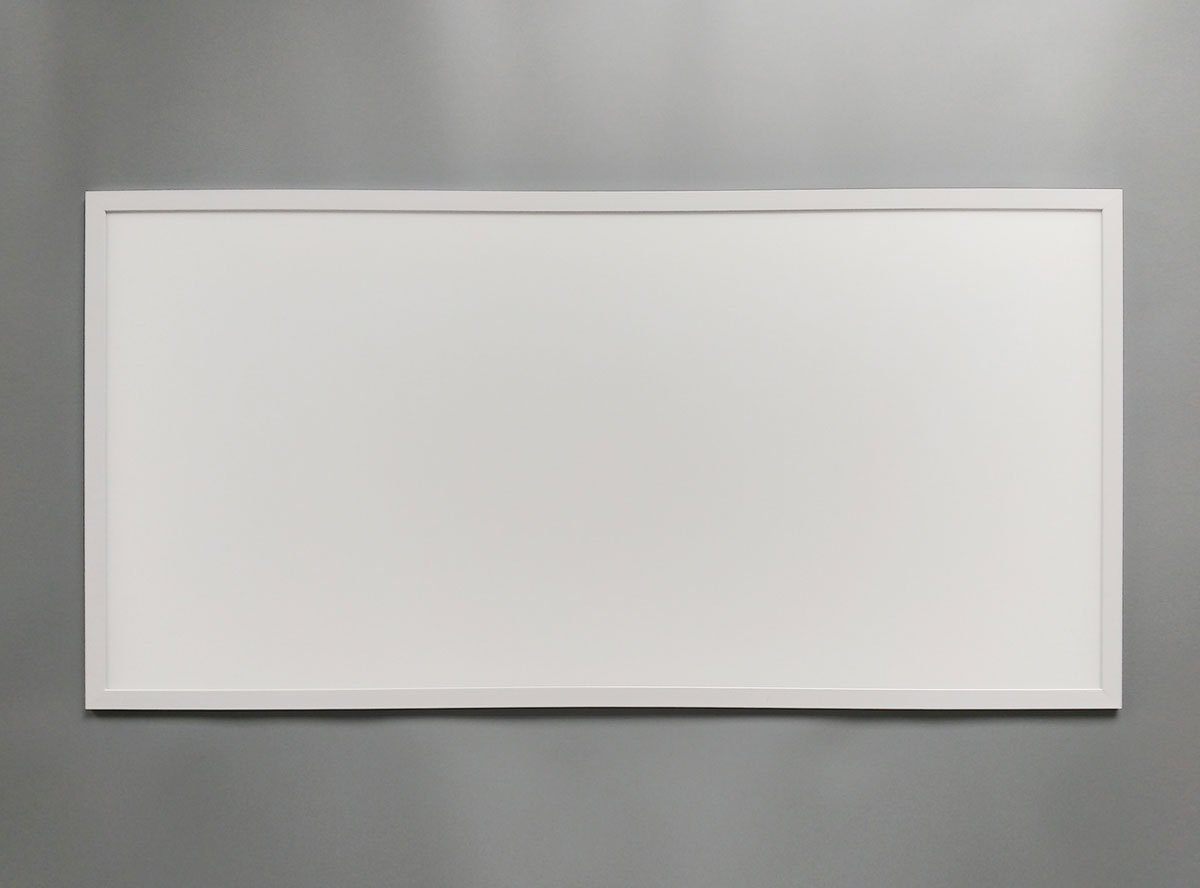

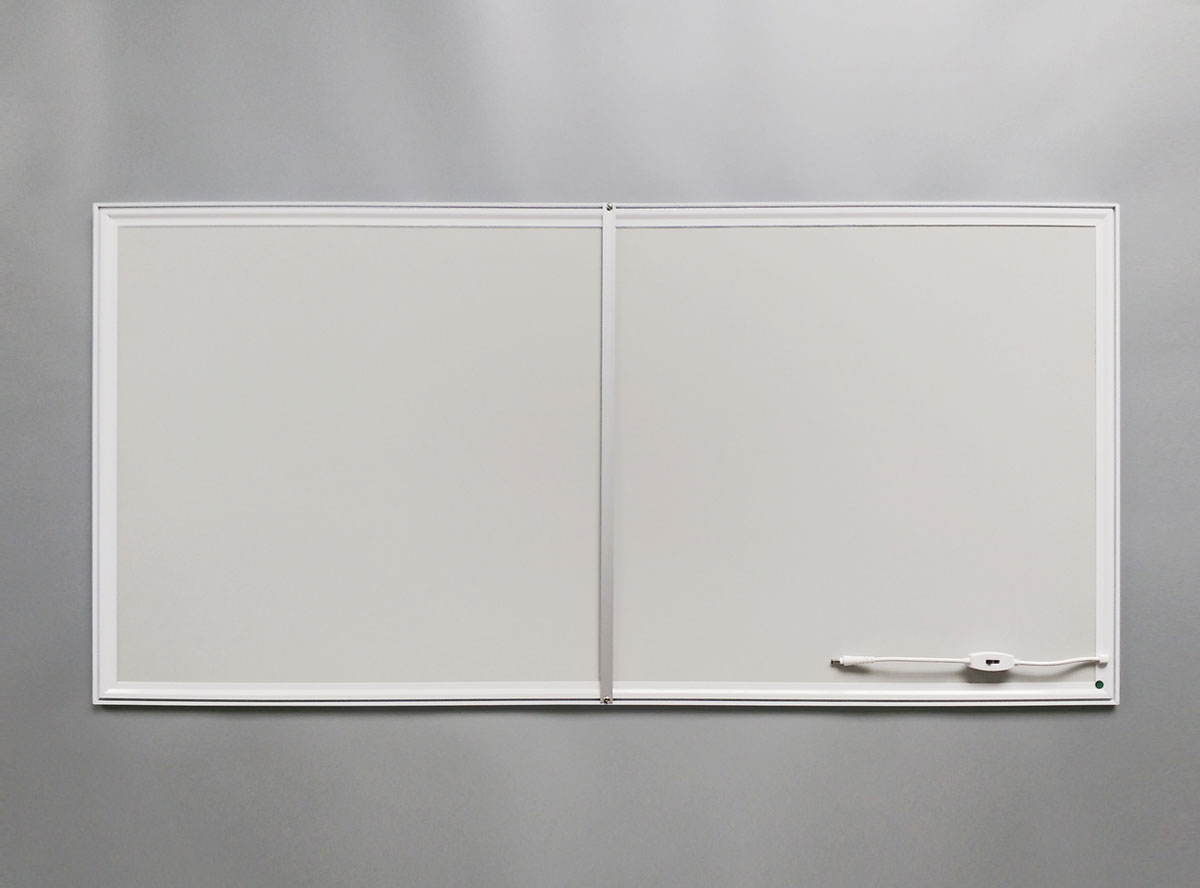

Home >Multiple Dimmable > CCT Tunable & Dimmable A3-1206-52W

CCT Tunable & Dimmable A3-1206-52W2019-11-18

Specification: 1195×600×10MM Wattage+/-5%: 52W
Efficiency (Lm/W): 80LM/W Lumen: 4160LM

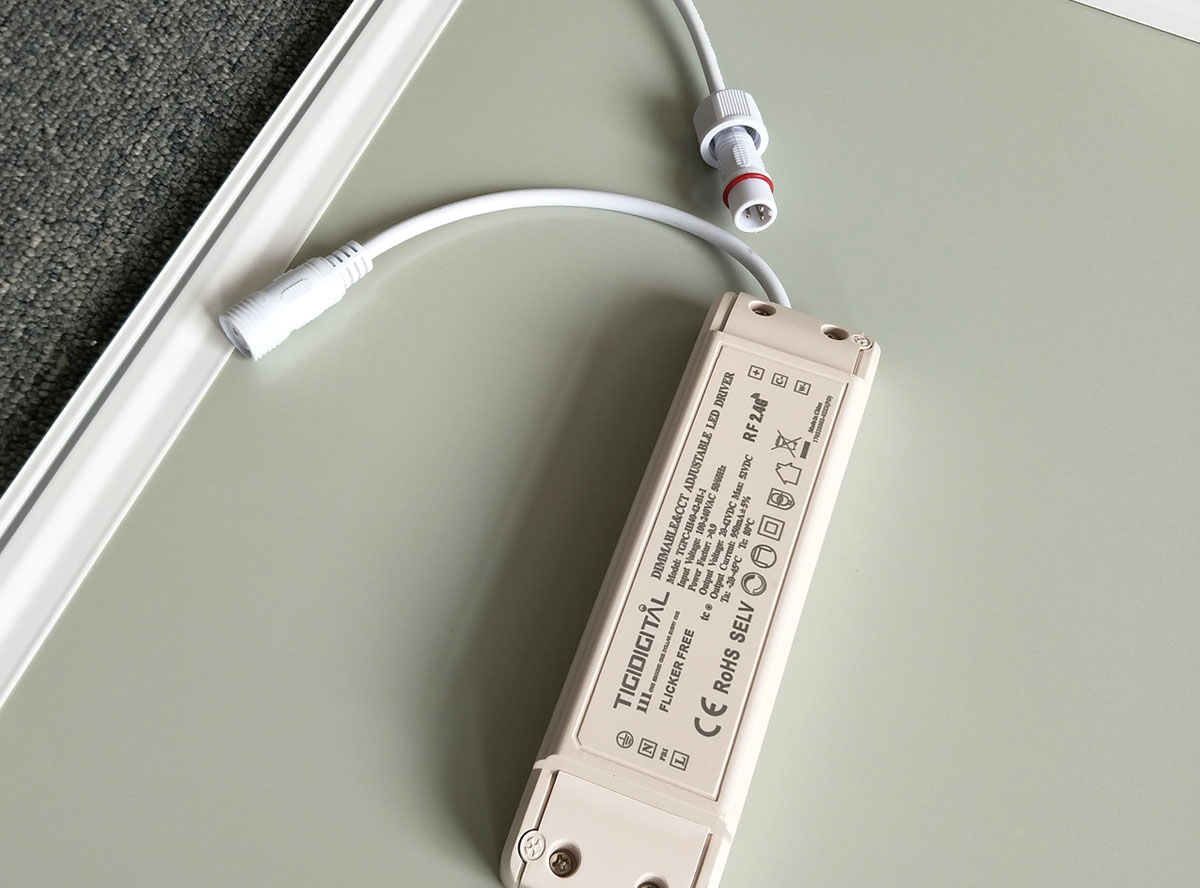

Driver: TIGI / BOKE Input voltage: 200~240Vac / 100~240Vac
Output Voltage: 30~42Vdc Frequency: 50/60Hz
PF: 0.95 CRI: Ra≥80
CCT: "3000~6500K Warm~Cool" LM-80 SMD Type: SMD 3014
No. of LEDs: 476 Leds SDCM: ≤5
IP Rating: 40 Lifespan: 3~50,000Hrs
Remark: A3 CCT Adjustment & Dimmable Series

The market leading LED flat panel is a kind of top grade indoor lighting. Make you enjoy your life in comfortable LED lighting.

Remote Controller Smart dimmable
1.2.4G RF Dimming,Remote Controller.
2.One controller can control 100 groups,can set any lamps as a group in a zone.
3.Every group can be controlled individually.
4.All the lamps can be controlled together.

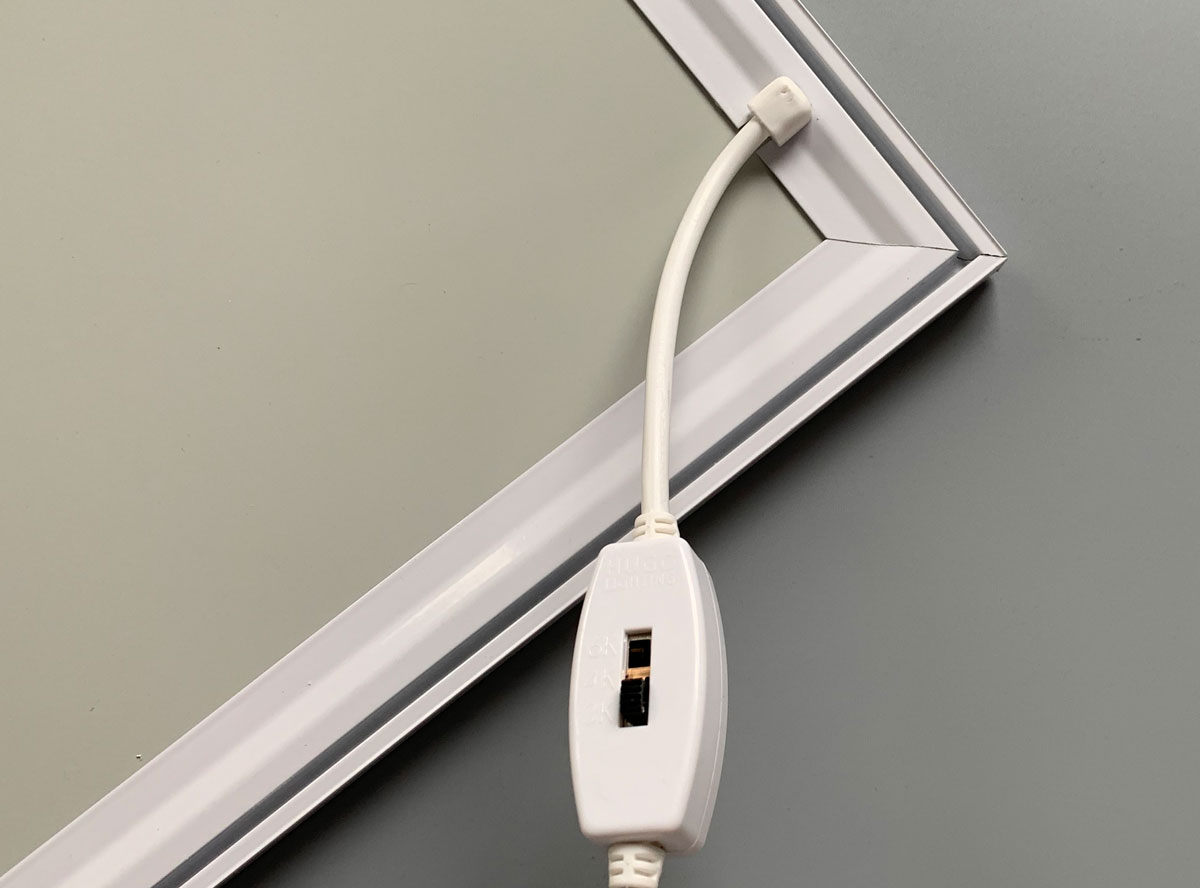

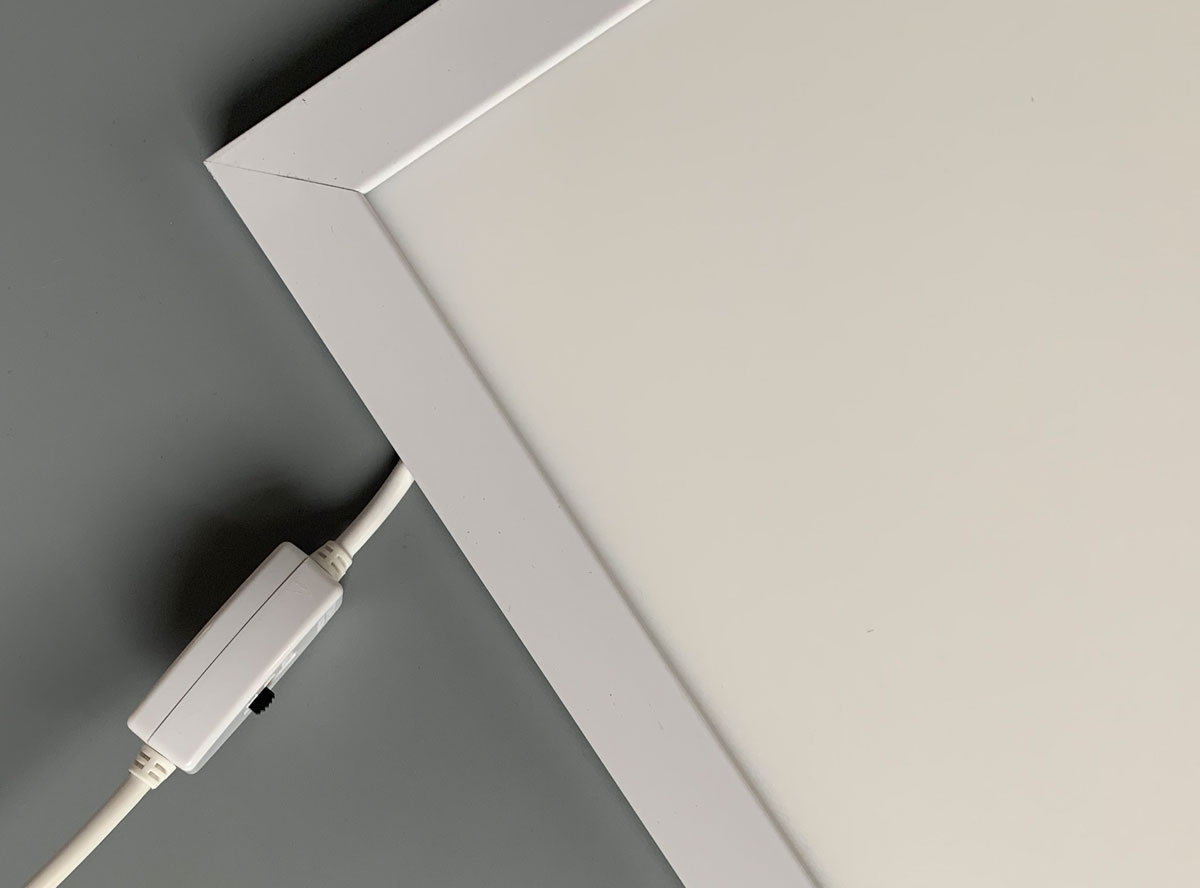

3CCT (3000K/4000K/6500K) Changeable Dail Switch
Using the three-stop color temperature dial switch, the color temperature can be changed from 3000K to 6500k. It is suitable for the needs of customers and has a high cost performance ratio.




■ Significant lowering operation cost,short payback time.
■ Easy to clean wipeable surface.
■ Warm,natural and cool white CCT options(3000-6500k Adjustable and Smart Dimmable). Excellent CRI.
■ 30,000 hours minimum life expectancy.
■ Emergency and dimmable versions.
■ Secure anti-temper design.
■ High visual comfort and very good glare reduction.
■ Environment friendly as it does not contain Mercury. No UV or IR radiations.
■ IP40 protection against dust.
