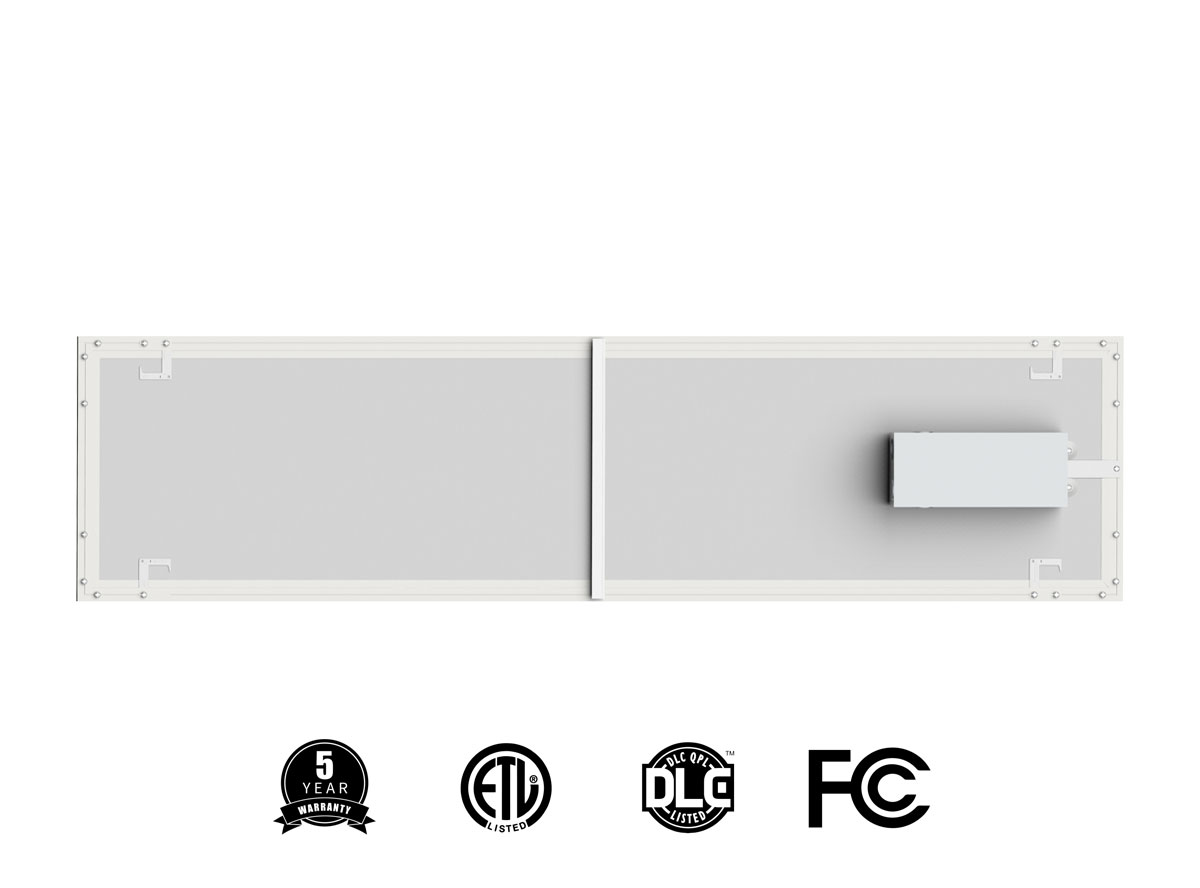

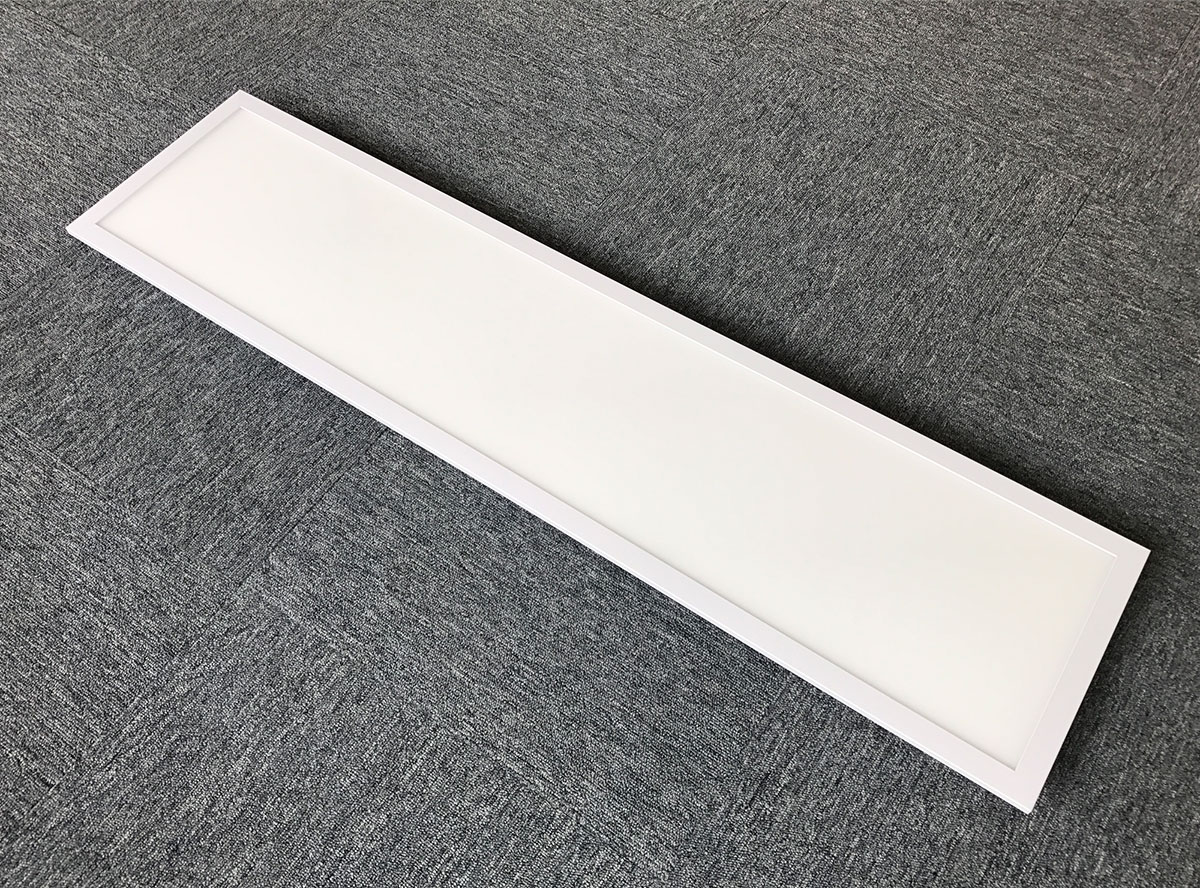

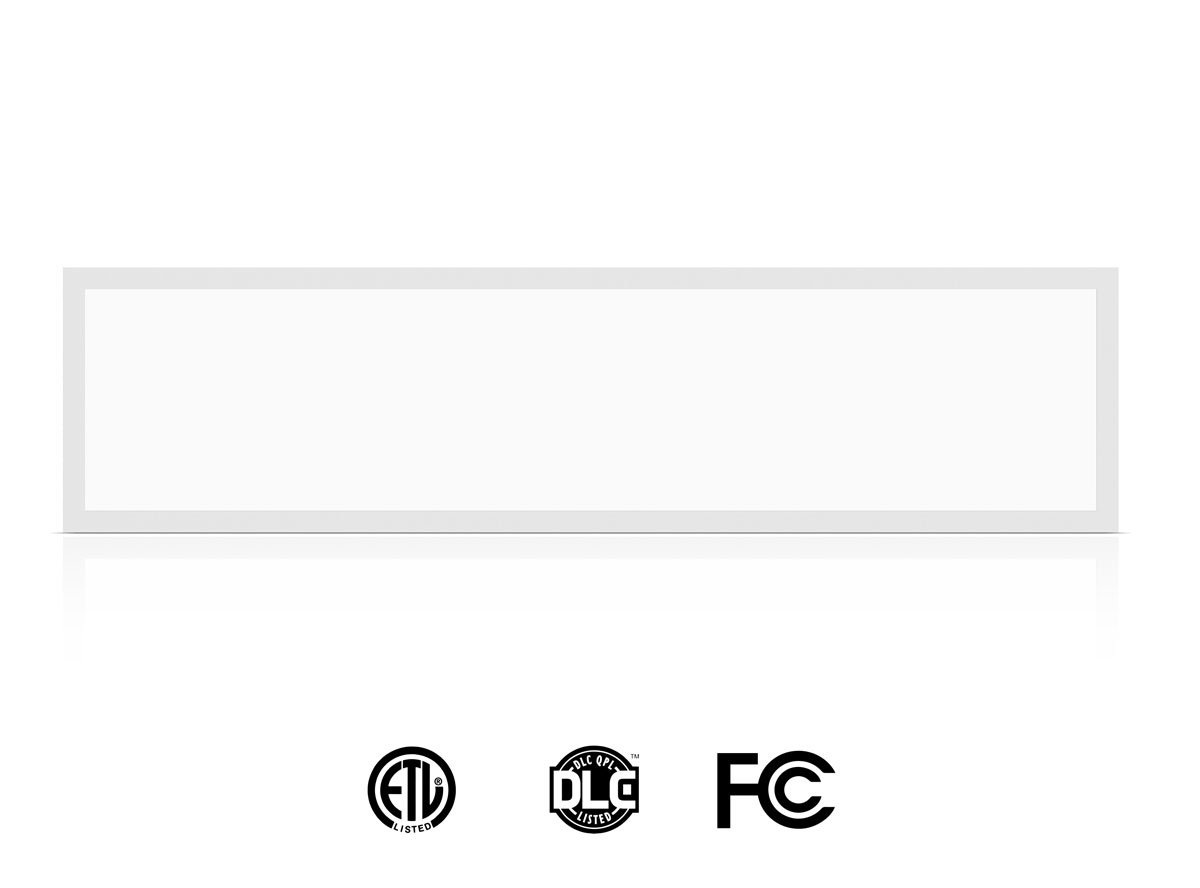

ETL-1x4-36W-100LM/W2019-11-15

Specification: 298X1213X10mm Wattage+/-5%: 36W
Efficiency (Lm/W): 100lm/w Lumen: 3000LM

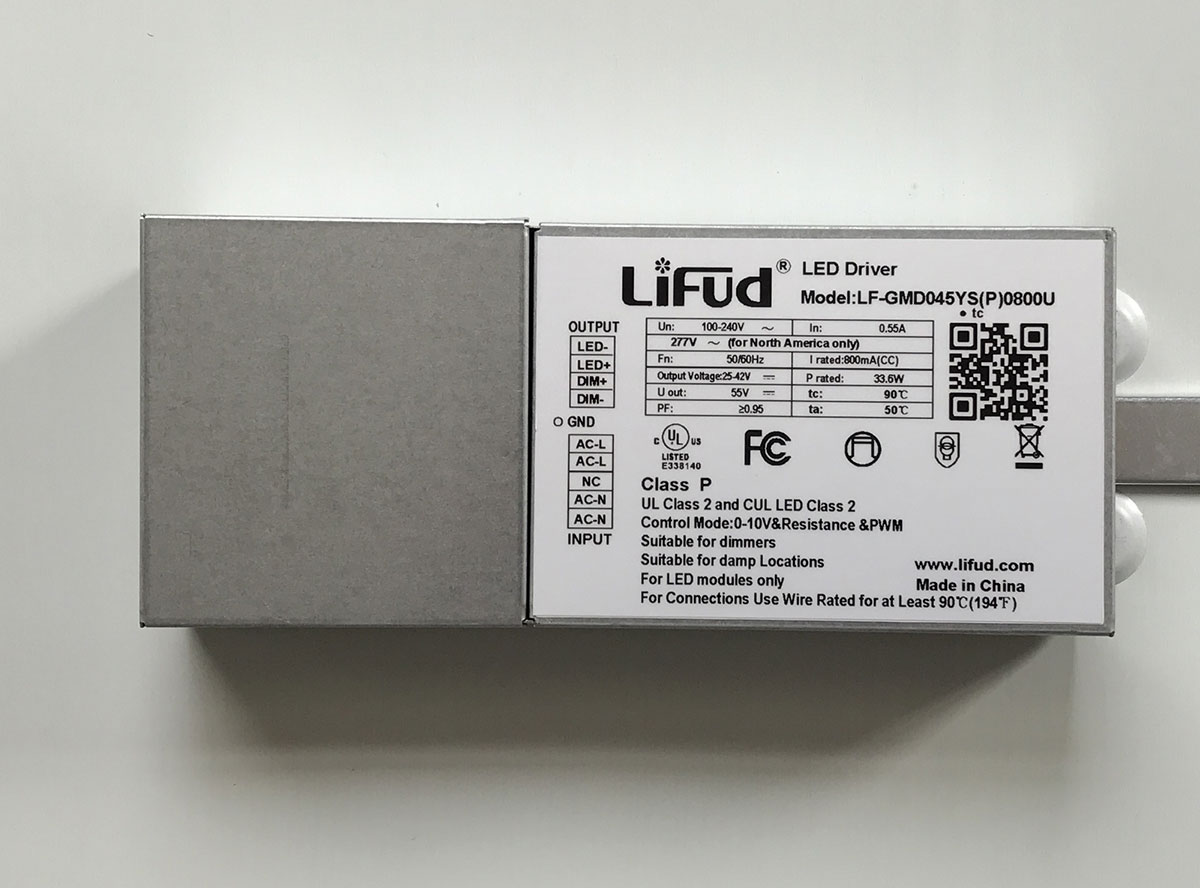

Driver: Lifud Input voltage: 100-277V
Output Voltage: 25-42V Frequency: 50/60HZ
PF: >0.95 CRI: >80
CCT: 3000K/4000K/5000K/6500K LM-80 SMD Type: SMD LED 4014
No. of LEDs: 240 PCS SDCM: <5
IP Rating: IP40 Lifespan: 50,000 hours
Remark: 1-10V, PWM and Rx Dimmable

The market leading LED flat panel is a kind of top grade indoor lighting. Make you enjoy your life in comfortable LED lighting.


\

\

——FEATURES

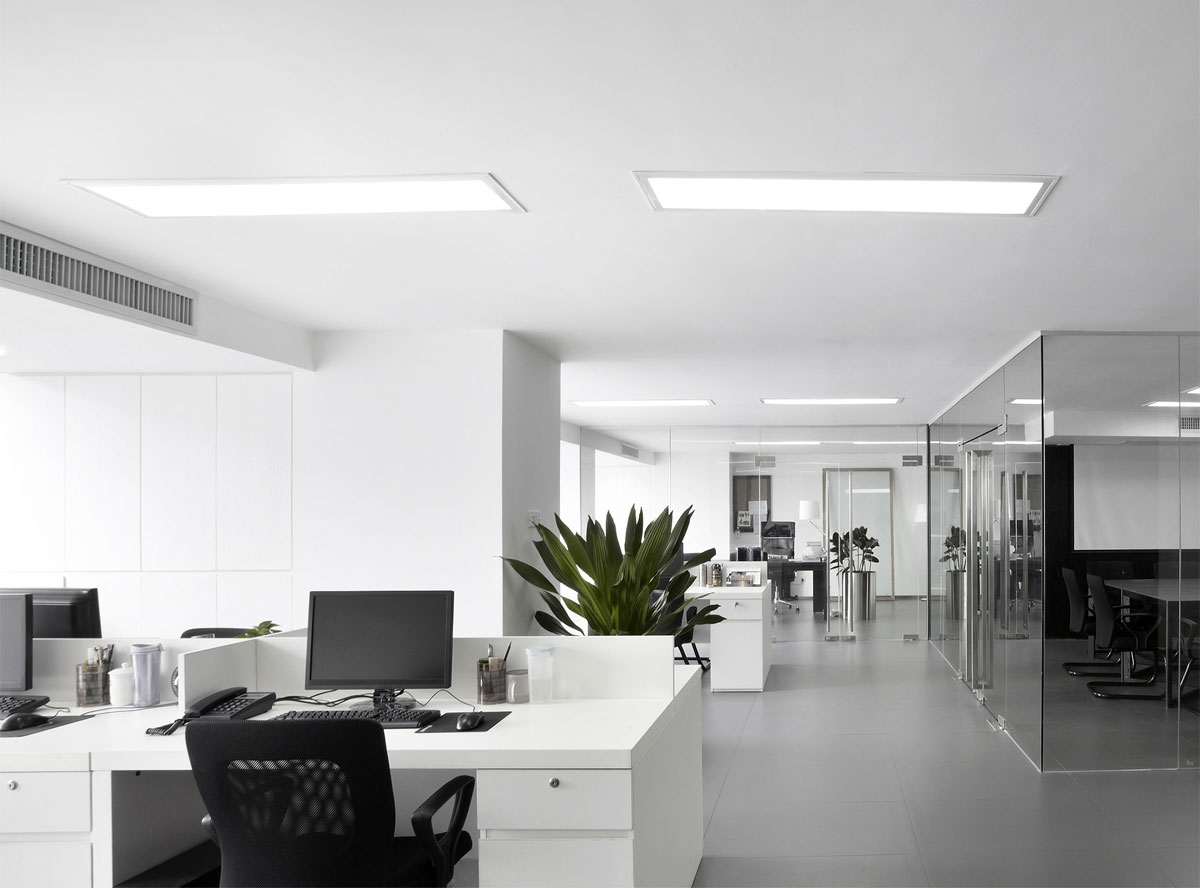

■ Luminaires for Ambient Lighting of Interior Commercial

■ Edge-lit LED for superior white and brightness uniformity

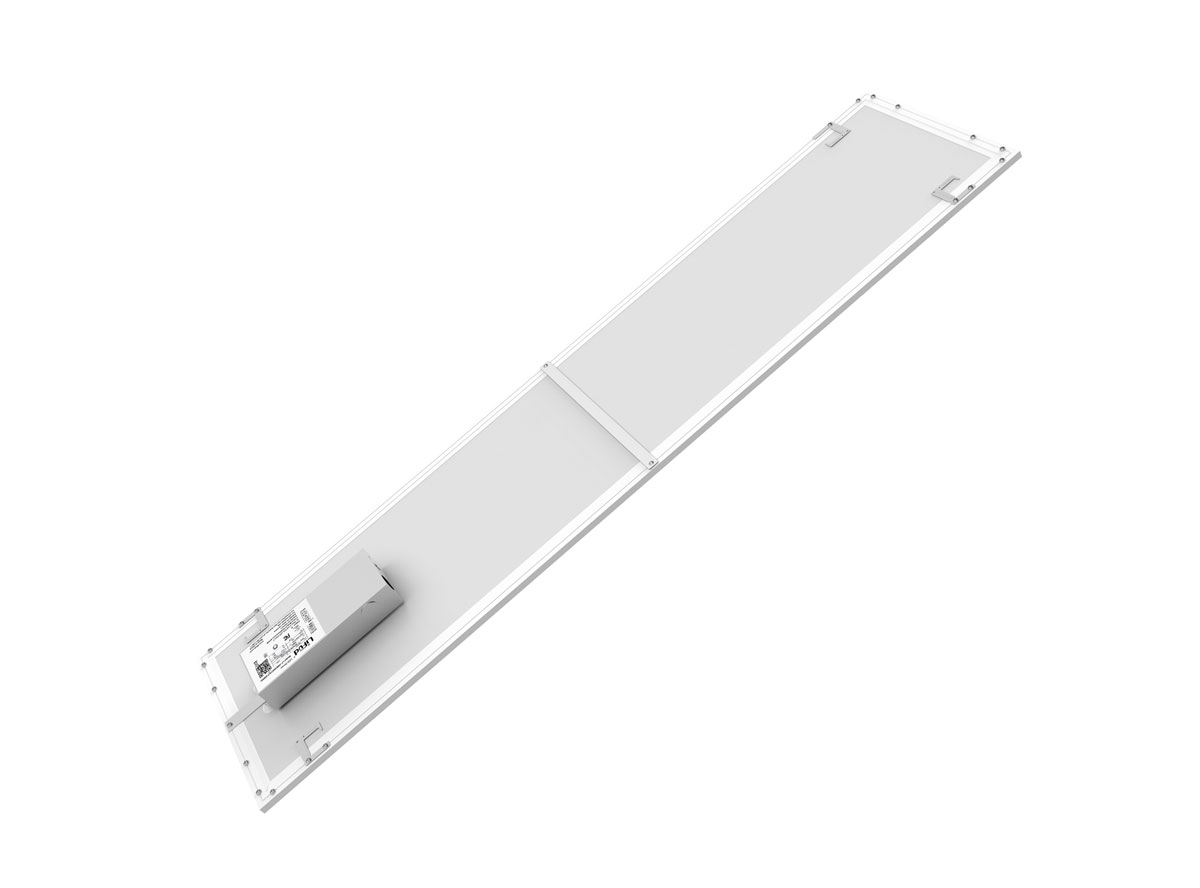

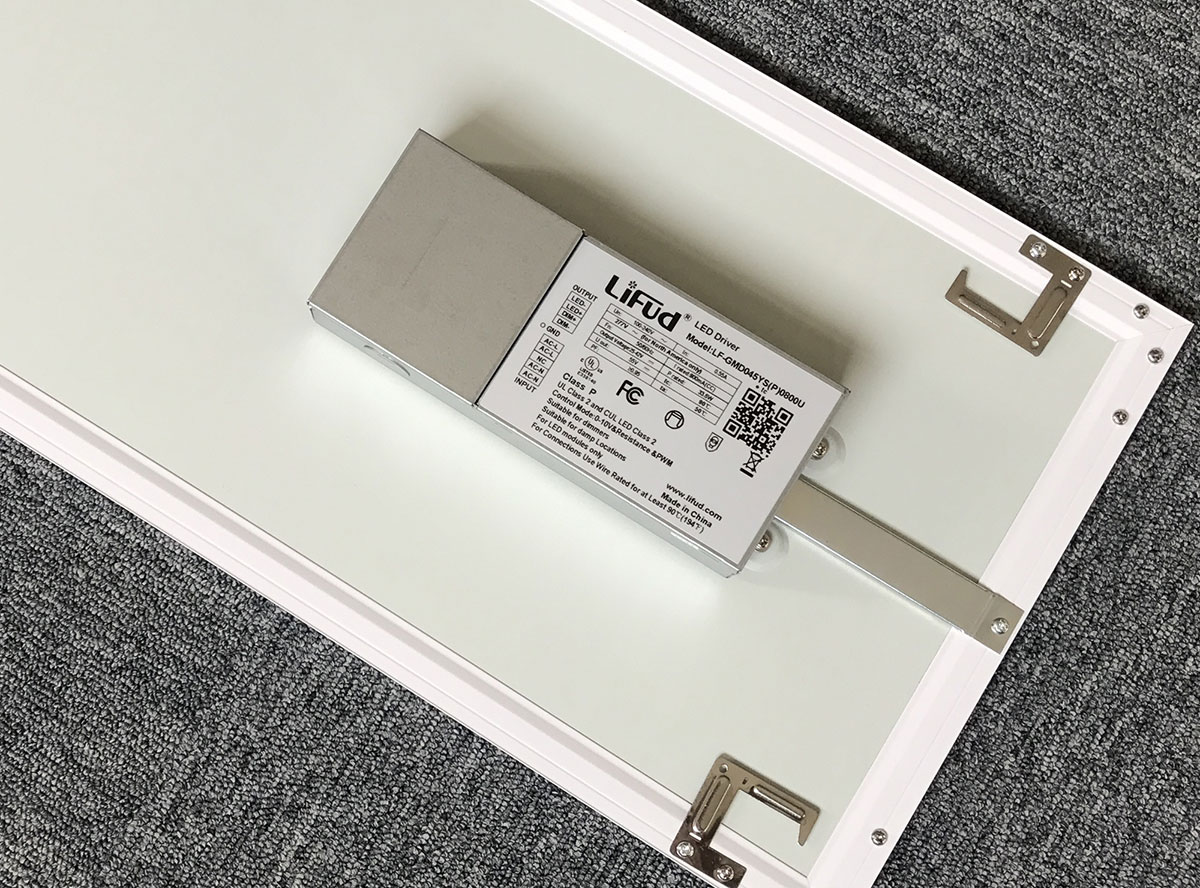

■ Mounting clips set on the back which keep well fasten to T-Bar ceiling

■ Directly replaces fluorescent fixture and tube

■ Low light attenuation,On the back of led containing cooling stand, thermoelectric integrated, easy for heat dissipation, can effectively guarantee the leds long-term stability and reduce the light decay, less than 3% @4000h.Last 60% longer than standard troffer lighting

■ 50,000 hours minimum life expectancy

■ 0-10V ,PWM and Rx dimmable versions designed with three in one

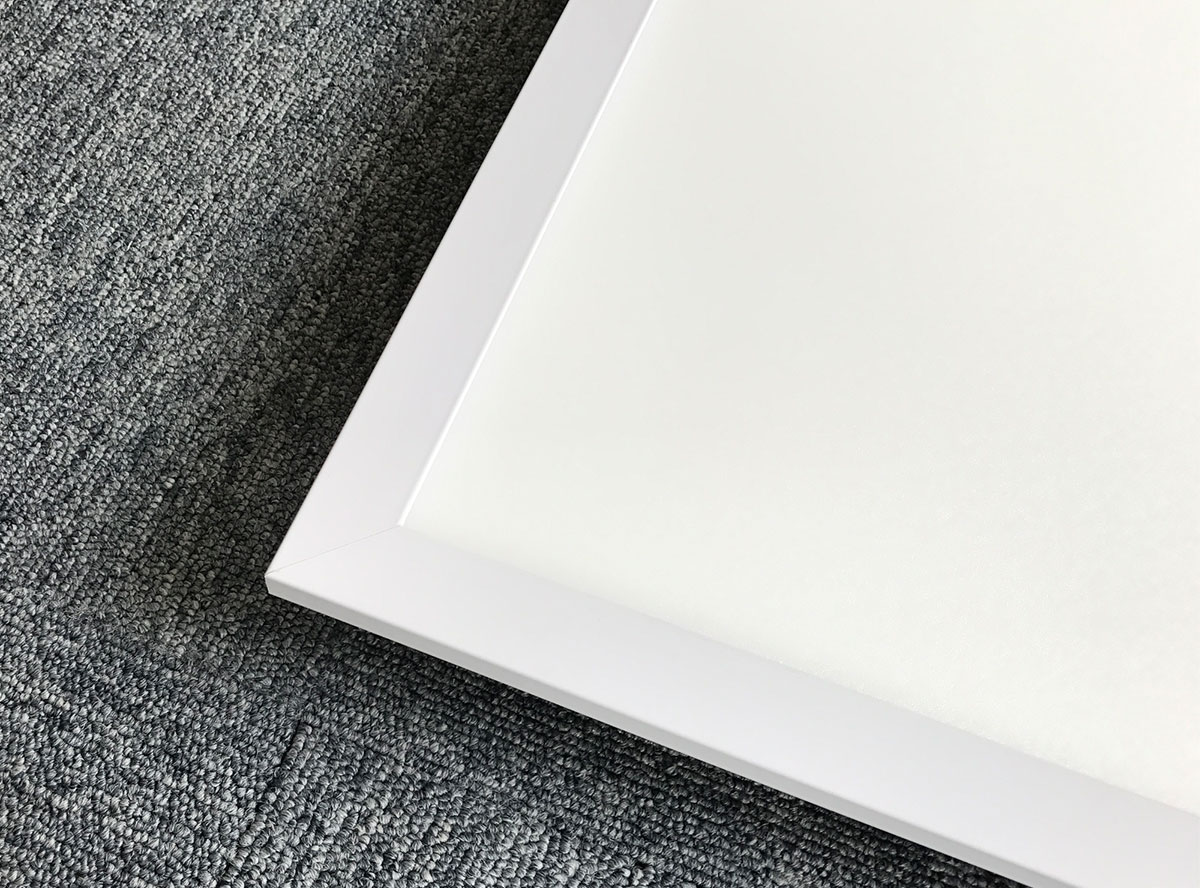

■ The anodized aluminum frame is stylish and fashionable with everlasting color. It can cool very well with high thermal conductivity. Easily adapt with any ceiling.Easy to clean wipeable surface

■ Environment friendly as it does not contain Mercury. No UV or IR radiations

■ Suitable for dry and damp locations

■ Type IC rated

■ High safety performance:The whole lamp have passed through EMC and LVD test.AIso be able to withstand 3750V high voltage shock and 1000V insulation test


——TEST DATA

\\\\
